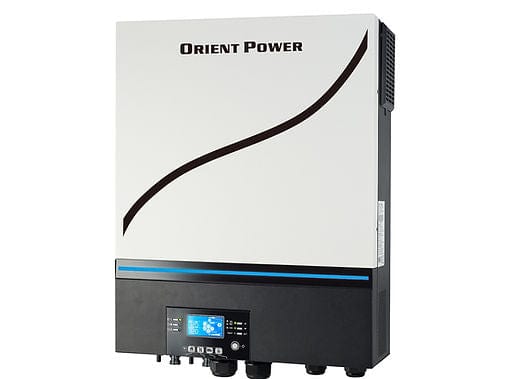

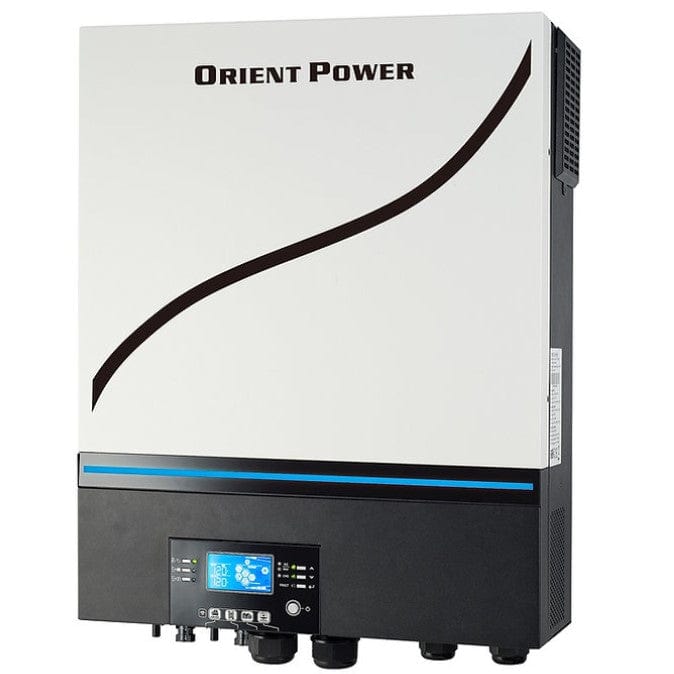

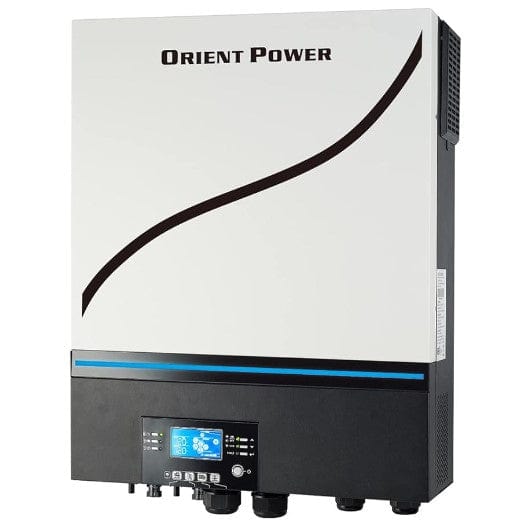

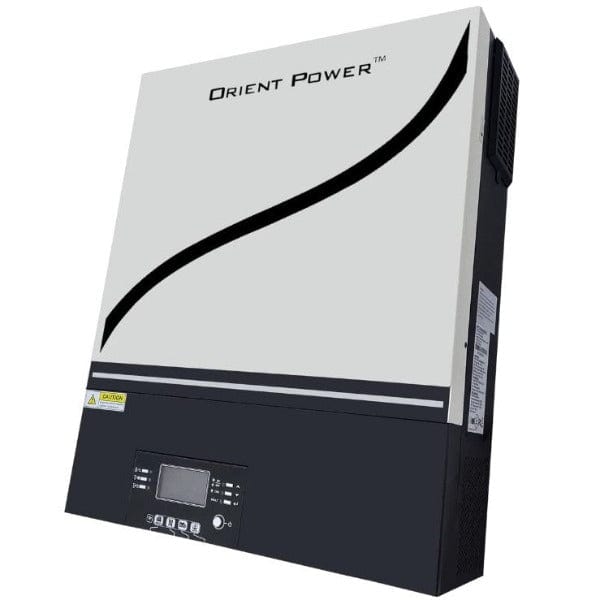

Orient Power Solar 120VAC 60Hz 48V 6500W LV6548 Inverter
Harnessing Solar Power Efficiently
Introducing the Orient Power Solar LV6548 Inverter – a powerhouse in the realm of solar energy conversion. This inverter is specifically designed to cater to the growing needs of efficient solar power utilization. Whether you’re setting up a residential solar system, powering a commercial building, or managing industrial solar applications, the LV6548 stands out for its ability to handle high-power requirements with ease. Its 6500W capacity ensures that your solar panels’ energy is maximized, translating into usable power with unparalleled efficiency and reliability.
Innovation in Solar Energy Conversion
The LV6548 is at the forefront of solar energy innovation. This inverter isn’t just about converting solar energy; it’s about transforming it with the highest proficiency and stability. Orient Power has integrated cutting-edge technology to ensure that the LV6548 operates at peak performance, irrespective of the application. This versatility makes it an ideal solution for a range of environments, from homes to large-scale commercial projects, providing a dependable and efficient energy source.
Designed for Optimal Performance and Durability
Understanding the demands of diverse environments, the LV6548 has been crafted with robustness and user convenience in mind. Its superior build quality guarantees longevity, even in the most demanding conditions. The user-friendly interface allows for easy operation and monitoring, simplifying the complexities of solar power management. This blend of durability and ease of use positions the LV6548 as a top choice for those seeking a reliable, high-performing solar inverter.
Features:
- High Capacity: 6500W output to handle substantial power loads.
- Versatility: Suitable for various applications, including residential, commercial, and industrial.
- Advanced Technology: Ensures efficient energy conversion and stable power output.
- User-Friendly Interface: Easy to operate, allowing for hassle-free usage and monitoring.
- Robust Build Quality: Designed to withstand demanding environments and ensure longevity.
Specifications:
| Rated Power | Max 6.5K, 6500VA/6500W |
| Parallel Capability | Yes, up to 6 units |
| Input | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Output | 120VAC ± 5% |
| Surge Power | 15000VA |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | <70W |
| Optional DC Voltage | 12 VDC ± 5%, 100W |
| Battery | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Range @ Operating Voltage | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120 A |
| Maximum AC Charge Current | 120 A |
| Maximum Charge Current | 120 A |
| Physical | Dimension: 147.4 x 432.5 x 553.6 mm, Net Weight: 18.4 kgs |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| Operating Environment | Humidity: 5% to 95% RH (Non-condensing), Operating Temperature: -10°C to 50°C, Storage Temperature: -15°C to 60°C |
| Standard Compliance | Safety standards compliant |
