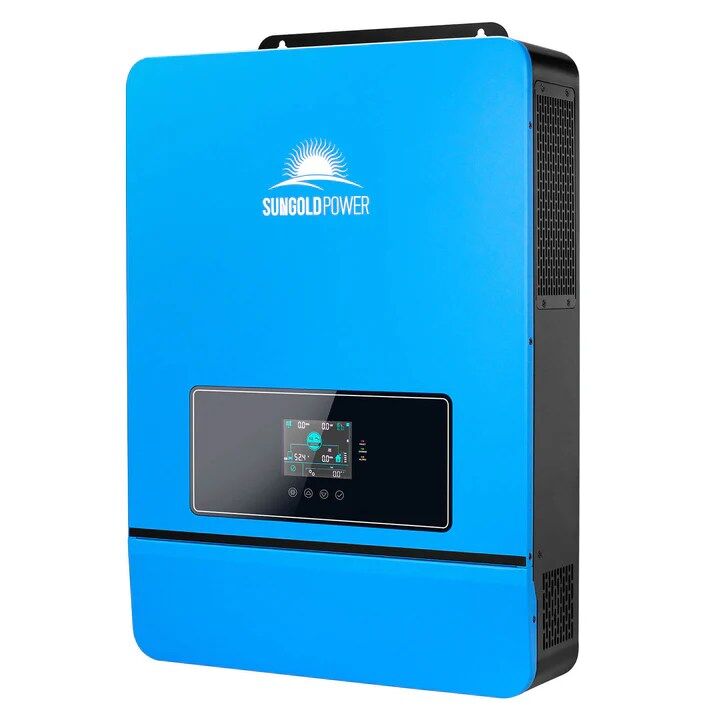

SunGoldPower 8KW 48V Split Phase Solar Inverter UL1741

SunGoldPower 8KW 48V Split Phase Solar Inverter UL1741

The SunGoldPower 8KW Off-Grid Solar Inverter, with its pure sine wave output, is perfect for home solar systems. This inverter supports various battery types, including AGM, Sealed, Gel, Flooded, and Lithium, and features an integrated 200A battery charger and 2 MPPT solar controllers. It is UL1741 certified, ensuring safety and reliability. Key features include hybrid, utility priority, and solar priority modes for efficient energy use, and a Wi-Fi module for remote monitoring. This product is ideal for homeowners aiming for an efficient, reliable solar power solution.

Highlights

All in One Unit

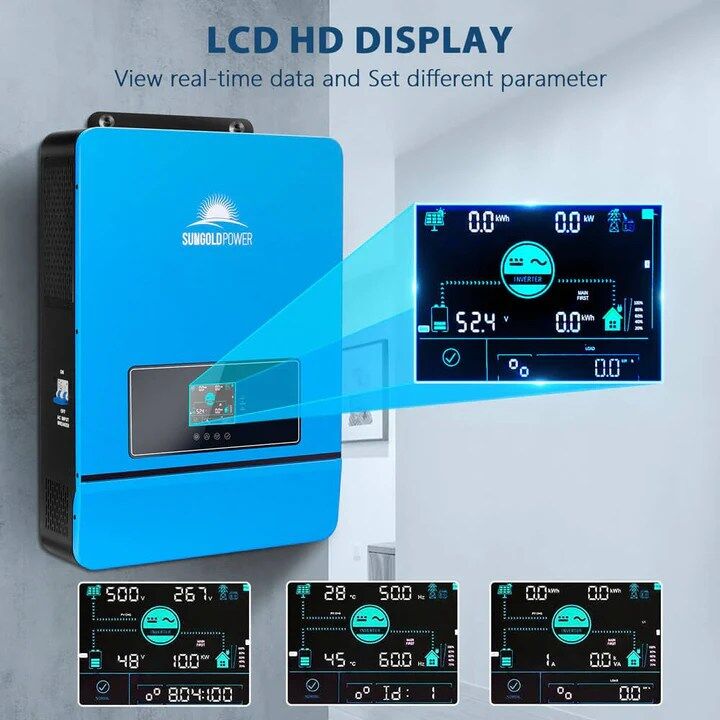

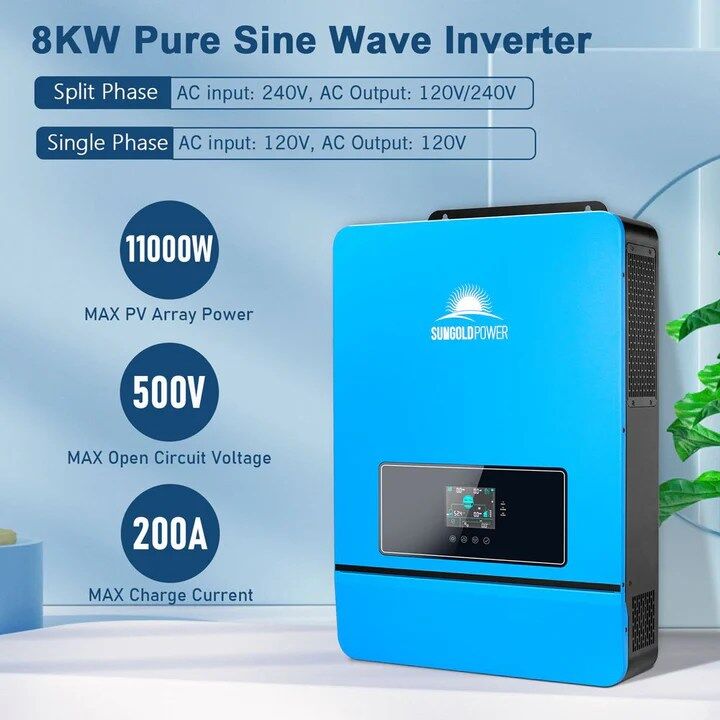

8KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit : 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP,UL1741 Listed by ETL.

Stable AC output and Smart Protection

Rated Output Power:8000W, Max Peak Power:16,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.

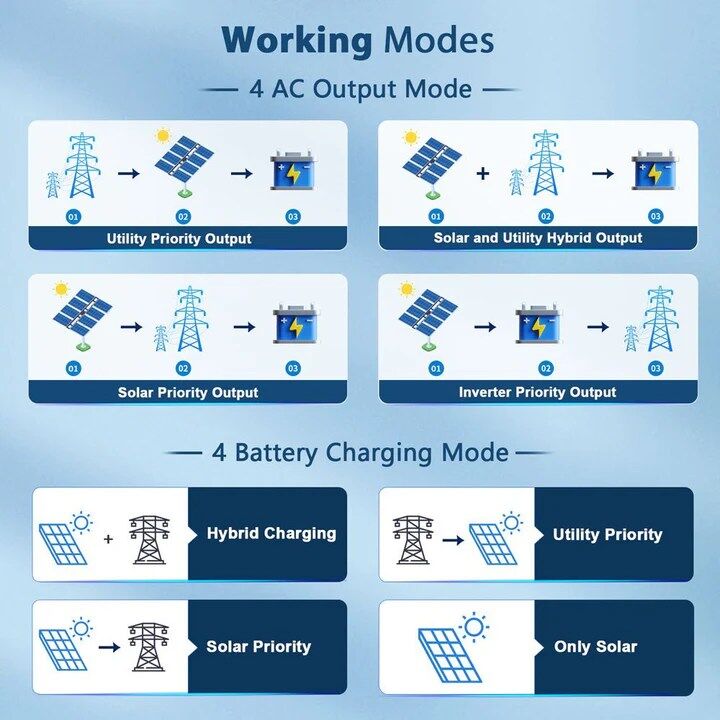

Four charging / Output modes

Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

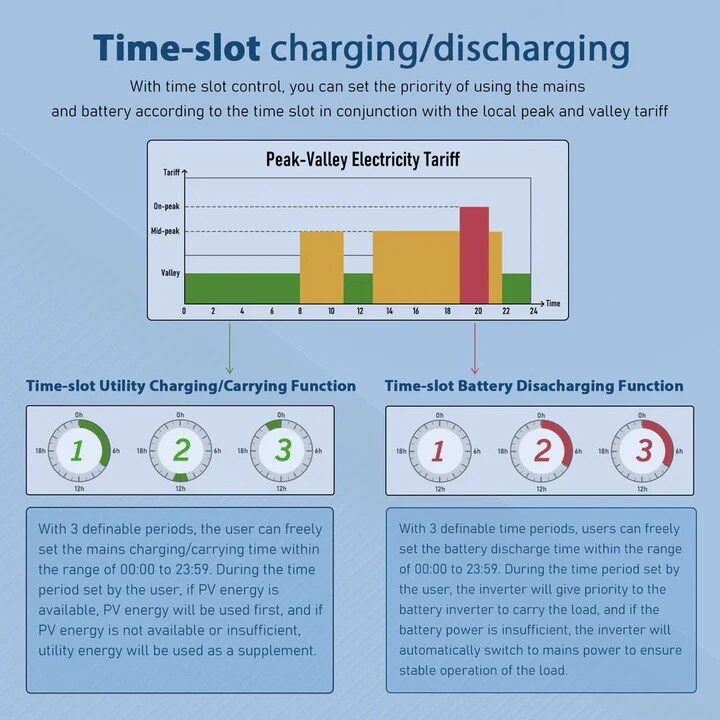

Time-slot charging/discharging function

The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

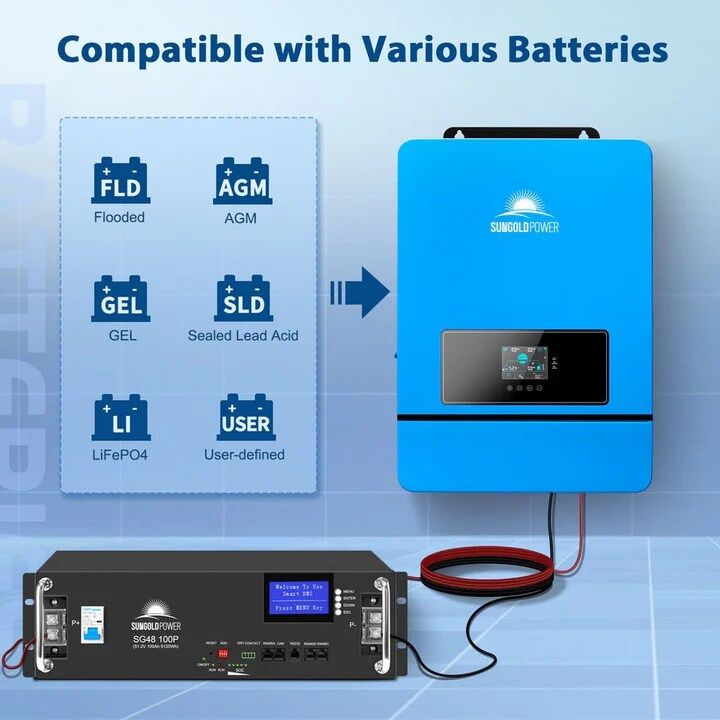

Battery type:

48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.

Specifications

View and Download

• User Manual
