Ordering: Solis-1P(3.6-5)K-4G-US-PLUS
• APST(APS MLRSD Transmitter)
• RSS(Tigo MLRSD Transmitter)

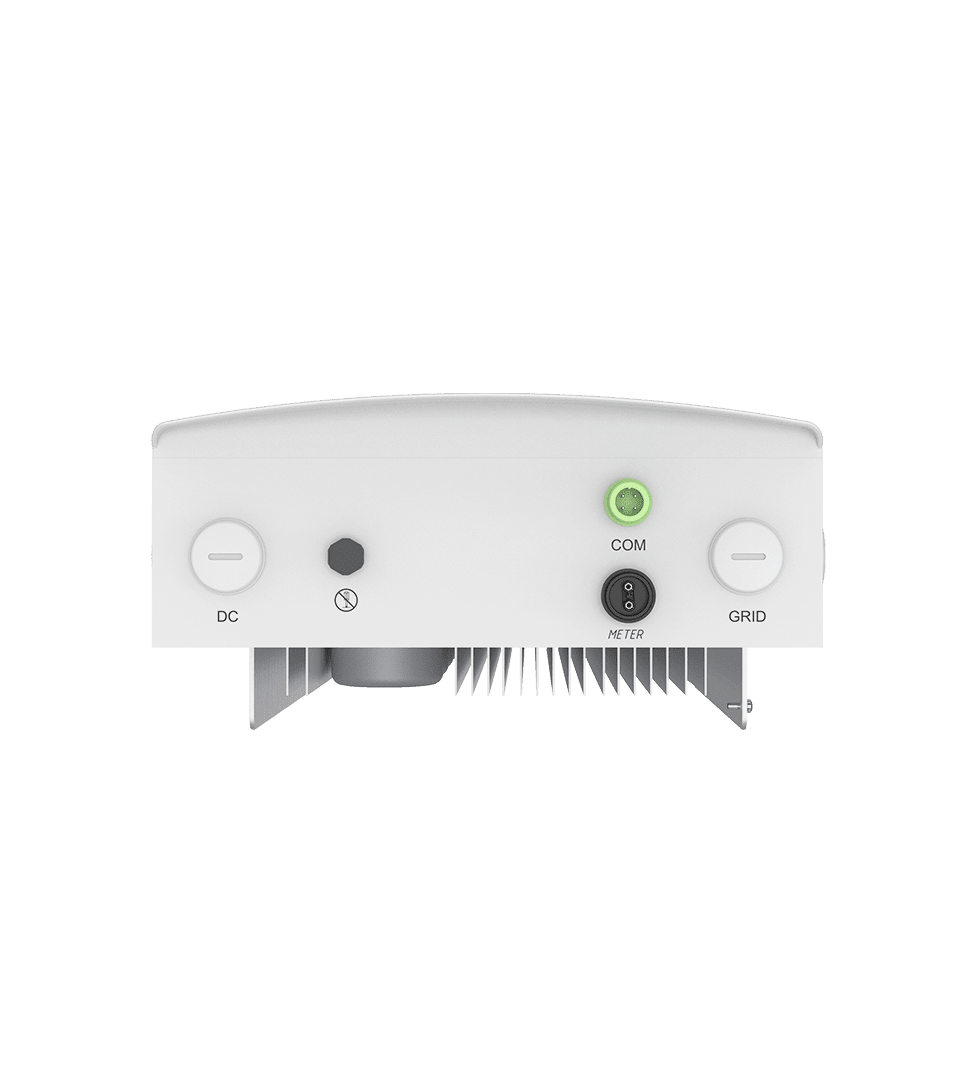

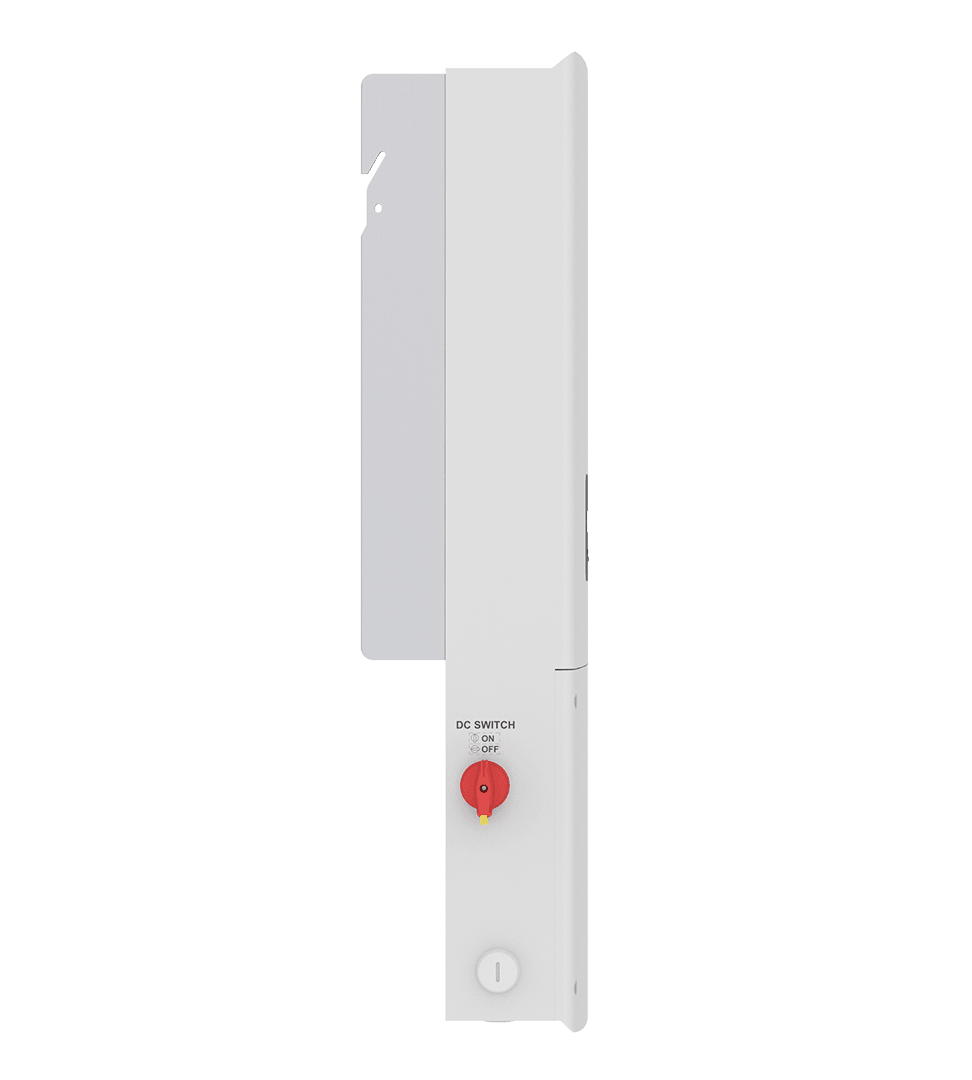

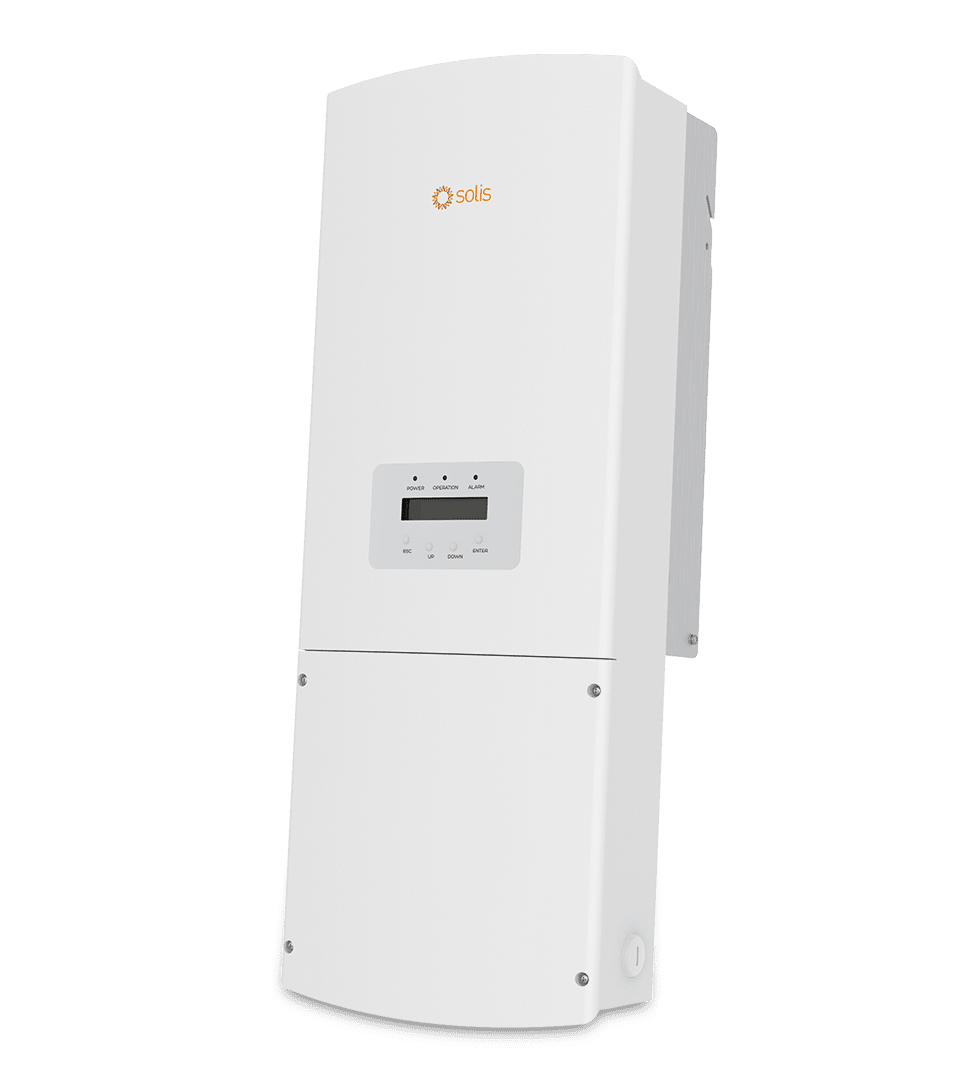

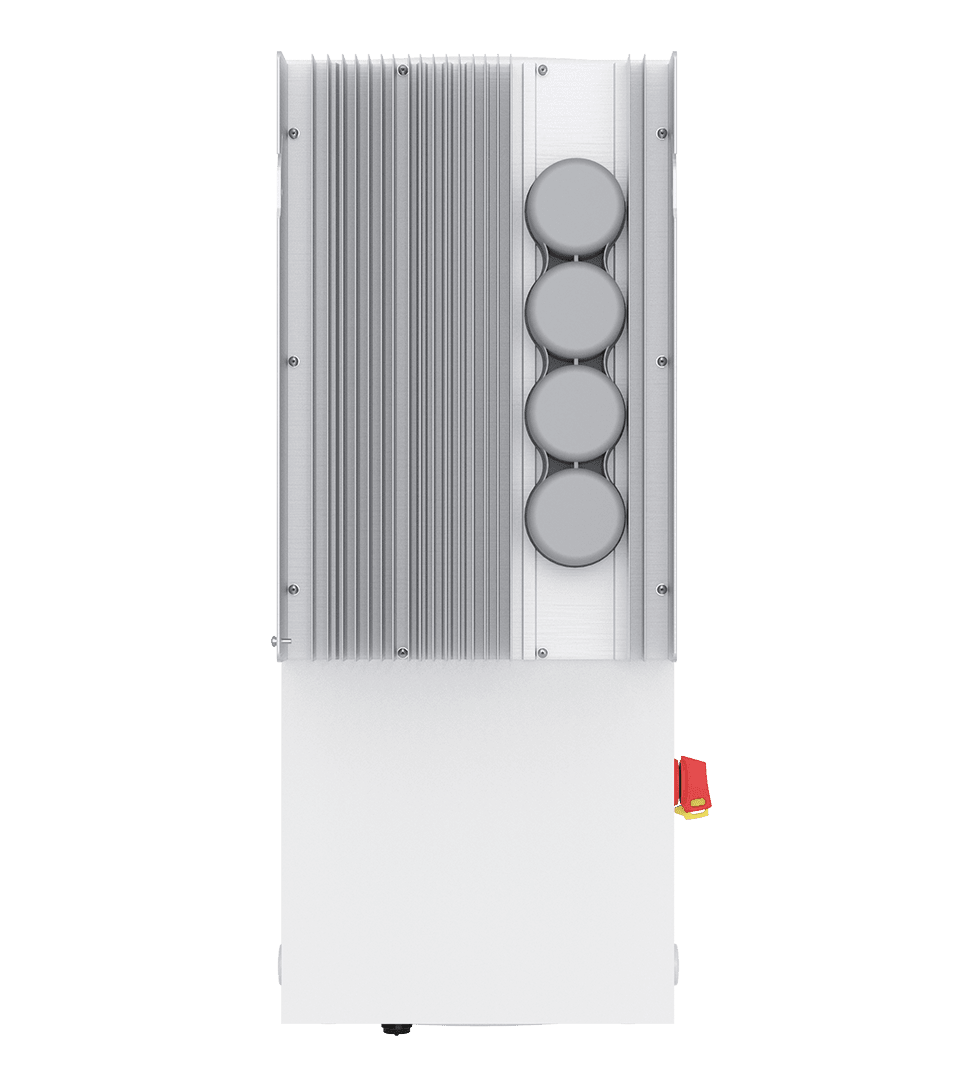

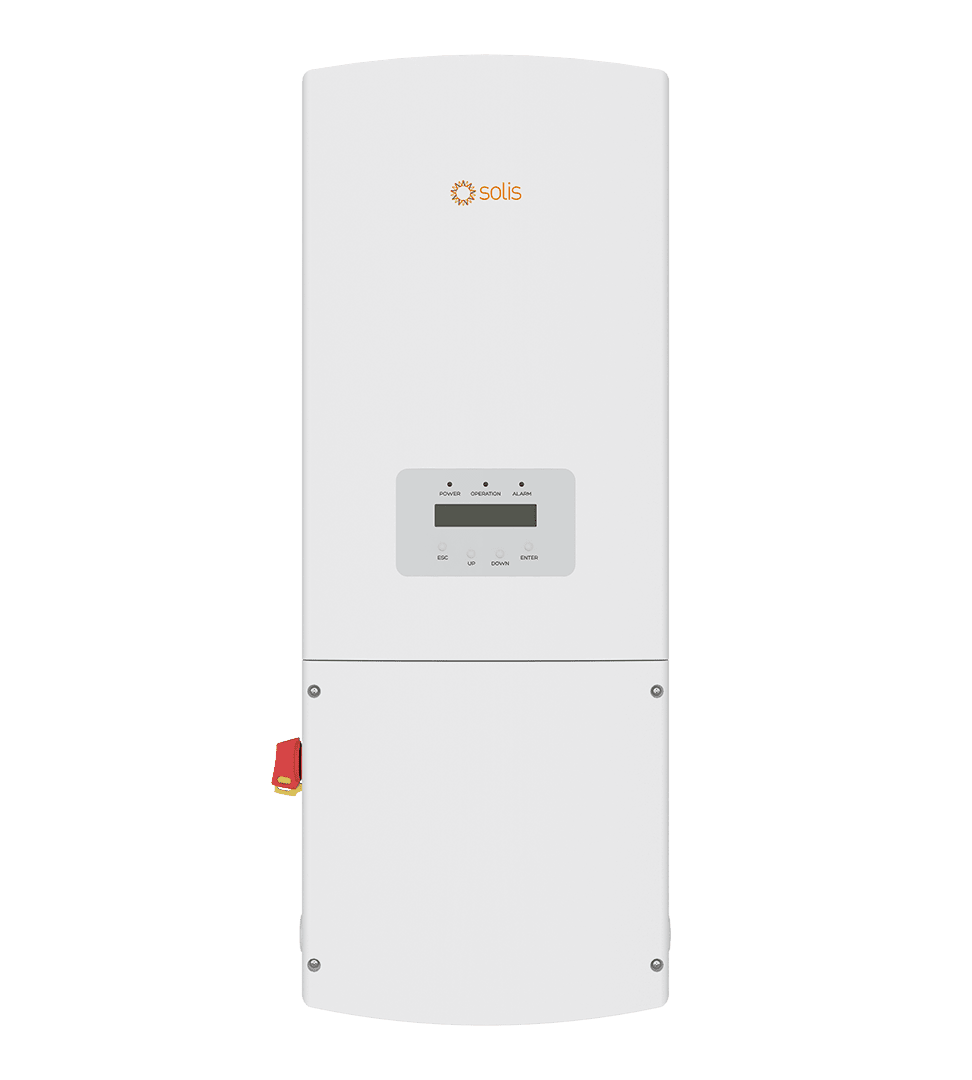

360° View
Solis 3.6-5KW US plus version single phase string inverters have dual MPPTs which can be utilized in complex design environments. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
3.6-5kW Single Phase Inverter
Leading Features
- String current up to 14A
- Support module level monitoring
- Max. efficiency 97.7% (CEC efficiency 97.1%)
- CA Rule 21 compliant and UL 1741 SB Certified
- Sunspec protocol with option cellular and WiFi
- Integrated module level rapid shutdown transmitter
- AFCI protection, proactively reduces fire risk
- 10 years standard warranty with extension option
- Fast and dynamic MPPTs and industry-leading DC voltage range
- Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Technical Specifications
Input DC | Max. input voltage | 600 V | Rated voltage | 330 V |
| Start-up voltage | 120 V | MPPT voltage range | 90-520 V | |
| Max. input current | 14 A / 14 A | Max. short circuit current | 22 A / 22 A | |
| MPPT number | 2 | Max. input strings number | 2 |
Output AC | Rated output power | 3.6 kW | Max. apparent output power | 3.6 kVA |
| Max. output power | 3.6 kW | Rated grid voltage | 1Ф/PE, 240 V / 208 V | |
| Rated grid frequency | 60 Hz | Max. output current for 240V grid | 15.0 A | |
| Max. output current for 208V grid | 17.3 A | Power Factor | >0.99 (0.8 leading – 0.8 lagging) | |
| THDi | <3% |
Efficiency | Max. efficiency | 97.3% | CEC efficiency | 96.6% |
Protection | DC reverse-polarity protection | Yes |
General Data | Dimensions (W*H*D) | 13.9*31.9*6.5 in (353*810*165 mm) | Weight | 33.1 lbs (15 kgs) |
| Topology | Transformerless | Self-consumption (night) | <1W | |
| Relative humidity | 0-100% | Operating ambient temperature range | -13°F to 140°F (-25°C to 60°C ) | |
| Storage environment | -13°F to 176°F (-25°C to 80°C) | Ingress protection | TYPE 4X | |
| Cooling concept | Natural convection | Max. operation altitude | 13120ft (4000m) | |
| Compliance | UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
Features | DC connection | 1 knockout for 3/4″ conduit at bottom, side and back, Screw clamp terminal | AC connection | 1 knockout for 3/4″ conduit at bottom, side and back, OT terminal |
| Display | LCD | Communication | RS485, Optional |
Download
Solis_certificate_IEEE 1547&UL 1741&UL 1699B_1P(1-6)K-4G_US_V02
Solis_certificate_Function1_8(E5000_E_5036)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US
Solis_certificate_Function2_3(SA17_SA18)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US
Zerun RSD_certificate_UL1741_C22,2_1P(1-6)K-4G-US_1P(6-10)K-4G-US_RHI-1P(5-10)K-HVES-5G_US_V01
