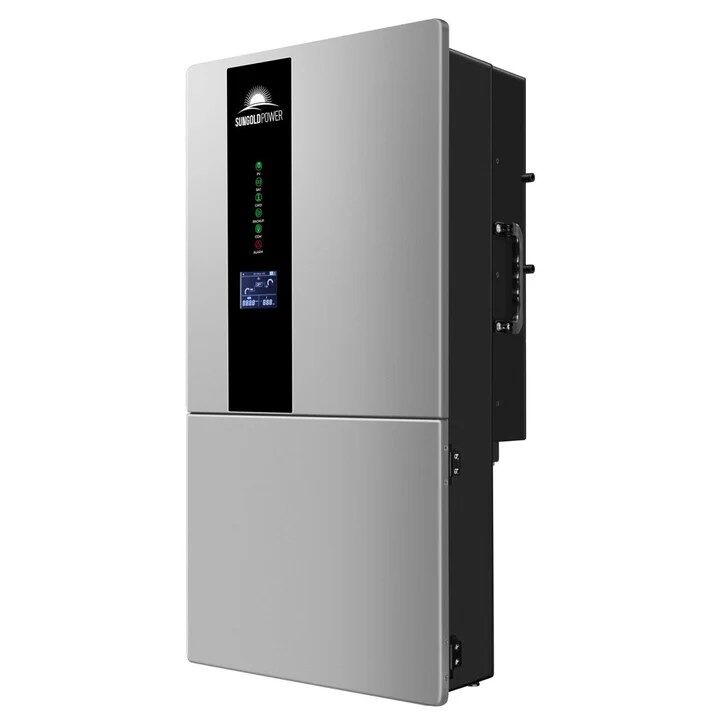

SGN11 Hybrid Inverter – 7.6KW / 11.4KW 48V Split Phase
Elevate your solar energy system with the SGN11 Hybrid Inverter, a versatile and powerful solution designed to meet diverse energy needs. Available in two models—SGN7.6K1HB-48 (7.6KW) and SGN11.4KHB-48 (11.4KW)—this inverter seamlessly integrates with both residential and commercial setups, offering reliability, efficiency, and scalability.
Key Features of the SGN11 Hybrid Inverter
- High Solar Input Capacity: Equipped with three Maximum Power Point Trackers (MPPTs), each supporting up to 600V input, the SGN11 Hybrid Inverter handles a total solar input of 12kW for the 7.6KW model and 15kW for the 11.4KW model.

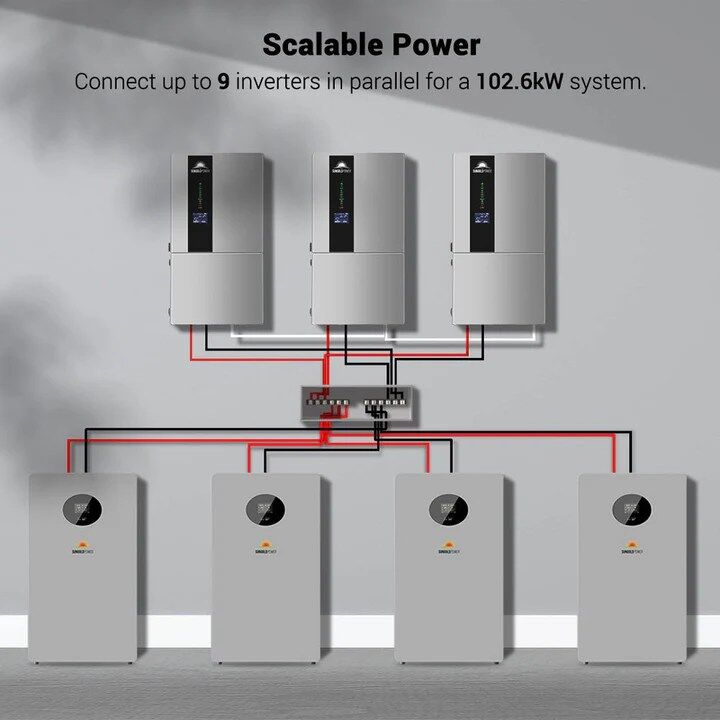

- Scalable Power Solution: Connect up to nine inverters in parallel, achieving a combined output of up to 102.6kW, making it ideal for expanding energy needs.

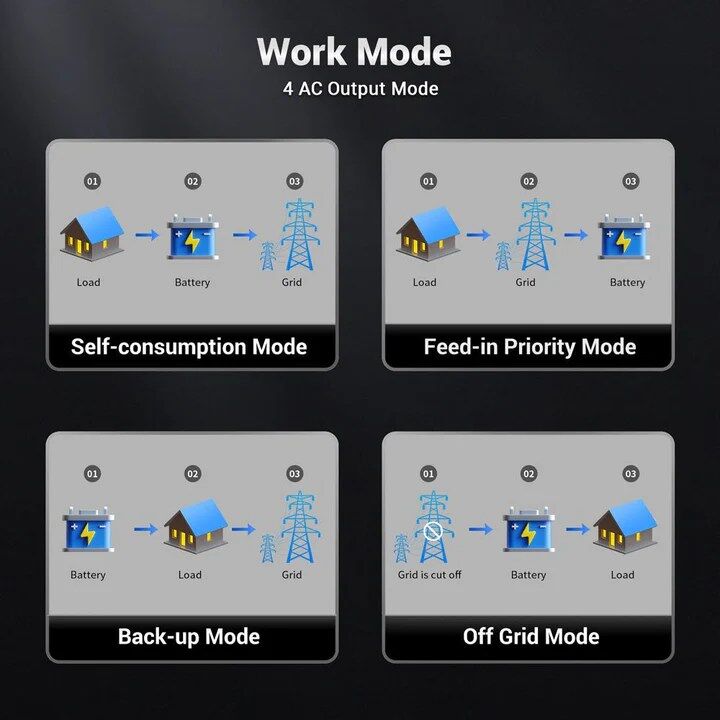

- Versatile Functionality: Supports grid-tie, off-grid, and hybrid solar configurations, providing flexibility to adapt to various energy scenarios.
- Advanced AC Coupling: Facilitates integration with existing grid-tie systems and smart load management, enhancing overall system efficiency.

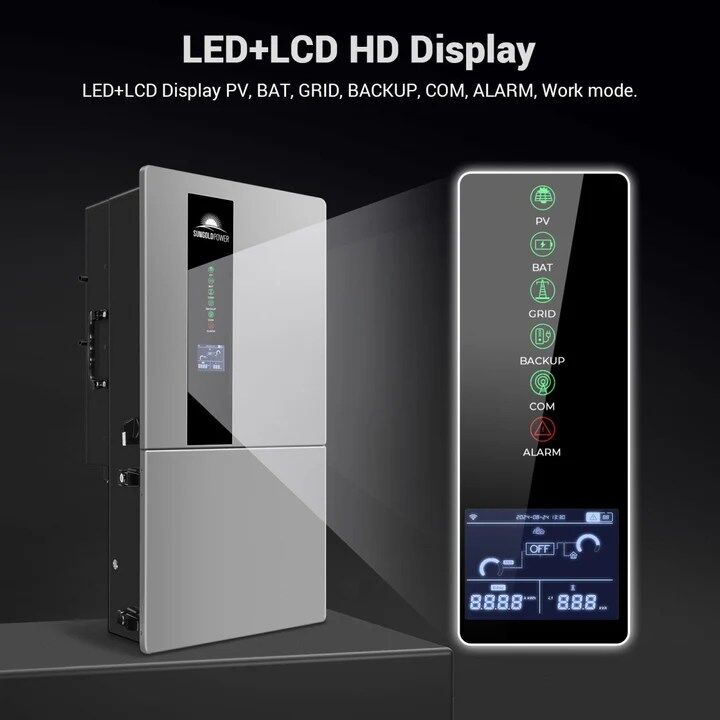

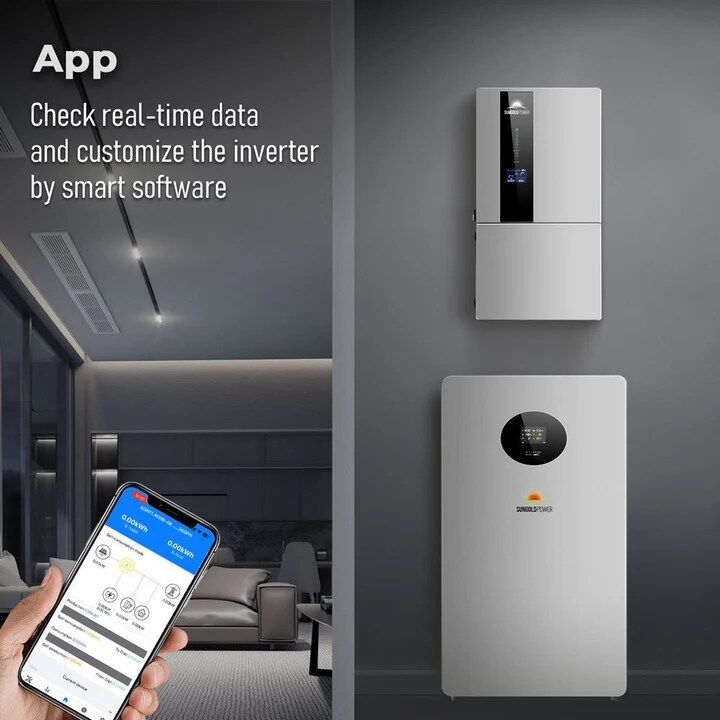

- User-Friendly Interface: Monitor and adjust settings effortlessly via an intuitive LCD display or through a dedicated mobile application.
- Reliable Backup Power: Ensures continuous power supply to critical loads with battery backup capabilities during grid outages.
- Durable and Safe Design: Features an IP65-rated, wall-mounted design, offering protection against dust and water ingress, suitable for various installation environments.
- Certified Quality: Complies with UL 1741, CSA C22.2, UL 1699B, UL 1741SB, IEEE 1547:2018, and HECO SRD 2.0 standards, ensuring safety and performance.
Technical Specifications
SGN7.6K1HB-48 (7.6KW Model)
- Continuous Output: 7.6KW
- Solar Input: Up to 12kW via 3 MPPTs
- Parallel Capability: Up to 9 units (totaling 68.4kW)
- Voltage: 48V DC
- Phase: Split Phase
- Warranty Options: 5 or 10 years

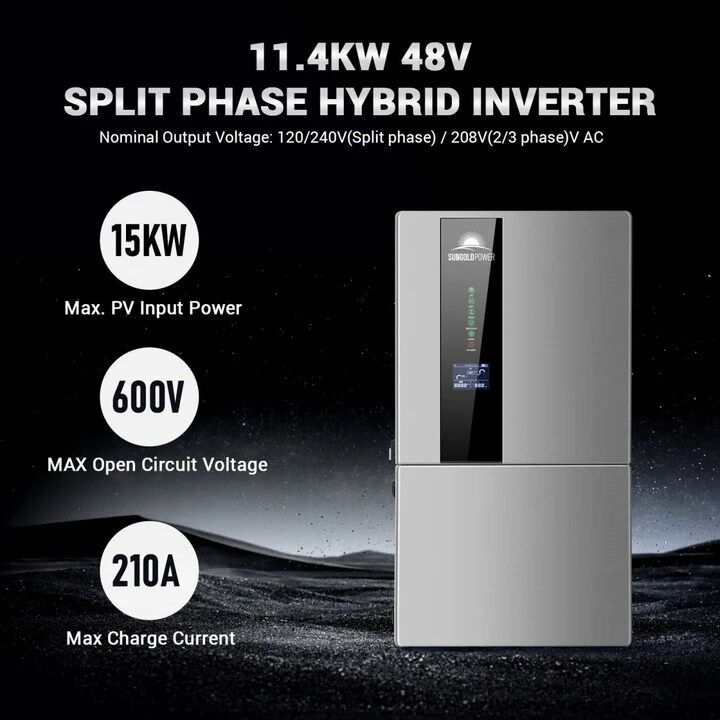

SGN11.4KHB-48 (11.4KW Model)
- Continuous Output: 11.4KW
- Solar Input: Up to 15kW via 3 MPPTs
- Parallel Capability: Up to 9 units (totaling 102.6kW)
- Voltage: 48V DC
- Phase: Split Phase
- Warranty Options: 5 or 10 years
Ideal Applications
- Residential Homes: Ensure uninterrupted power supply and optimize solar energy usage.
- Commercial Buildings: Manage energy consumption efficiently with scalable power solutions.
- Off-Grid Installations: Achieve energy independence in remote locations.
- Hybrid Systems: Combine grid and solar power for maximum flexibility and reliability.
Why Choose the SGN11 Hybrid Inverter?
The SGN11 Hybrid Inverter stands out for its adaptability, robust performance, and user-centric design. Whether you’re looking to upgrade your current system or embark on a new solar project, this inverter offers the features and reliability needed to meet your energy goals.
Order Now
Invest in the SGN11 Hybrid Inverter today and take a significant step towards efficient and reliable solar energy utilization. For bulk purchases or additional information, please contact our sales team.
