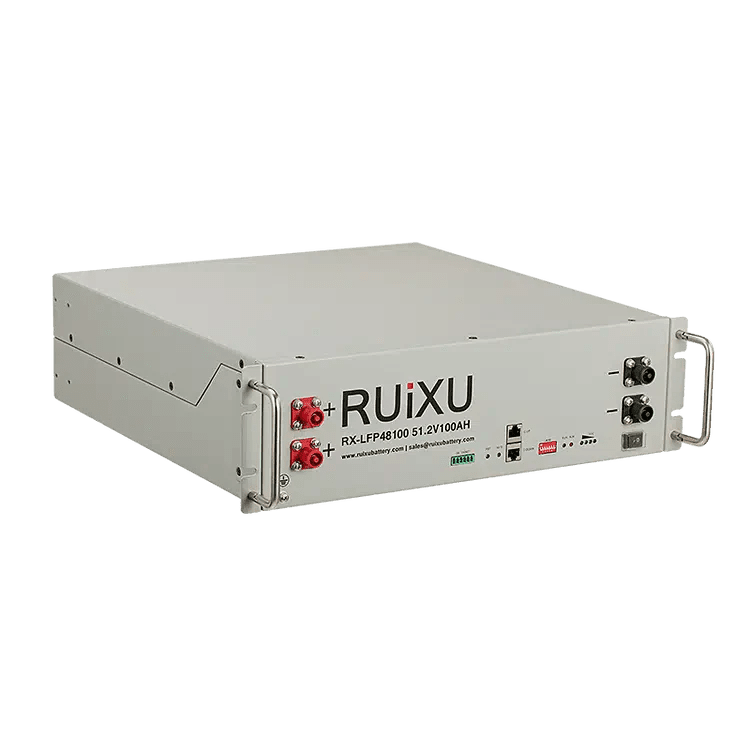

Introducing the RUIXU RX-LFP48100, a 19″ Rack Mounted 3U Module available at Solar Sovereign. With UL1973 certification and UL9540 pending, this module ensures the highest standards of safety and reliability. Designed for seamless integration into your energy storage system, the RX-LFP48100 offers efficient and dependable performance. Whether for residential or commercial applications, trust RUIXU for quality lithium battery solutions. Upgrade your energy storage setup with the RUIXU RX-LFP48100 from Solar Sovereign.

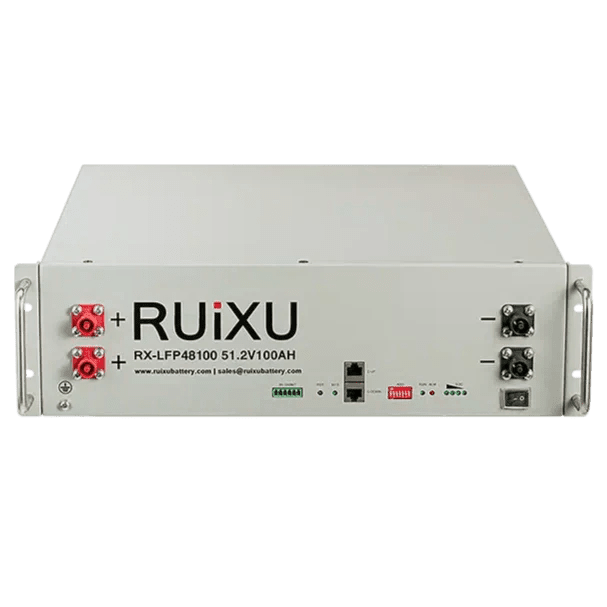

RUIXU RX-LFP48100
- Nominal voltage ：51.2V
- Nominal capacity@0.2C ：100 Ah
- Min. capacity@0.2C：100 Ah
- Nominal energy :5120Wh
- Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
- Weight: ~47kg (103.6lb)
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
- Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
- Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
- MUST,Sunsynk,Schneider
- RS485 : MPP,Voltronic,RCT,Alpha outback
What’s Included
- (1) RUiXU 48V Server Rack battery (RX-LFP48100)
- (1) RS485 Communication Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
Downloads
Firmware Downloads:
RuiXUTool Software Operation Instructions
RuiXUTools V1.03
USB to RS485 Driver
